The Engine
Your Instrument Data, Under Control.
NodeInsLab is a visual programming environment engineered for hardware data acquisition. It bridges your instruments, processing logic, and display layer in a single, reliable canvas.
Stop maintaining fragile scripts. Build robust, auditable data pipelines visually. Iterate on them in real time while your hardware is running.
Built for Power Users
Experience a fluid, responsive interface designed for speed and clarity.

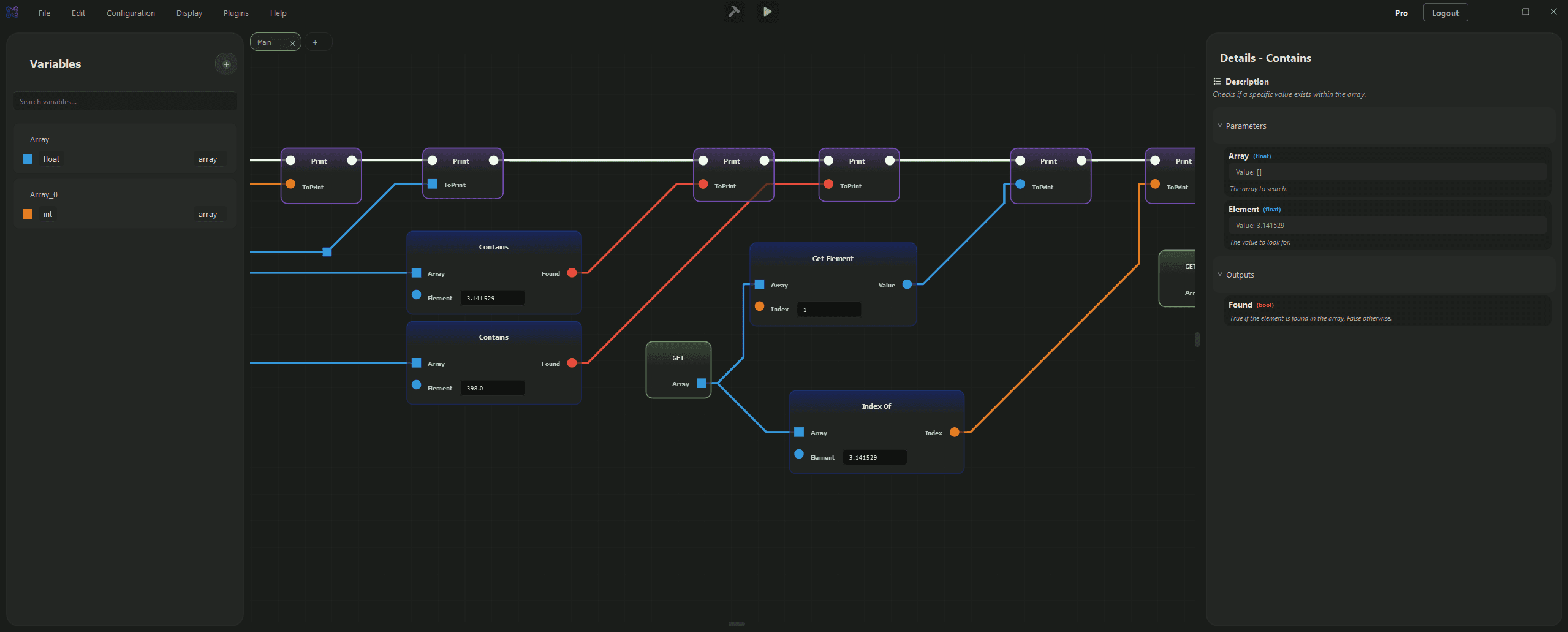

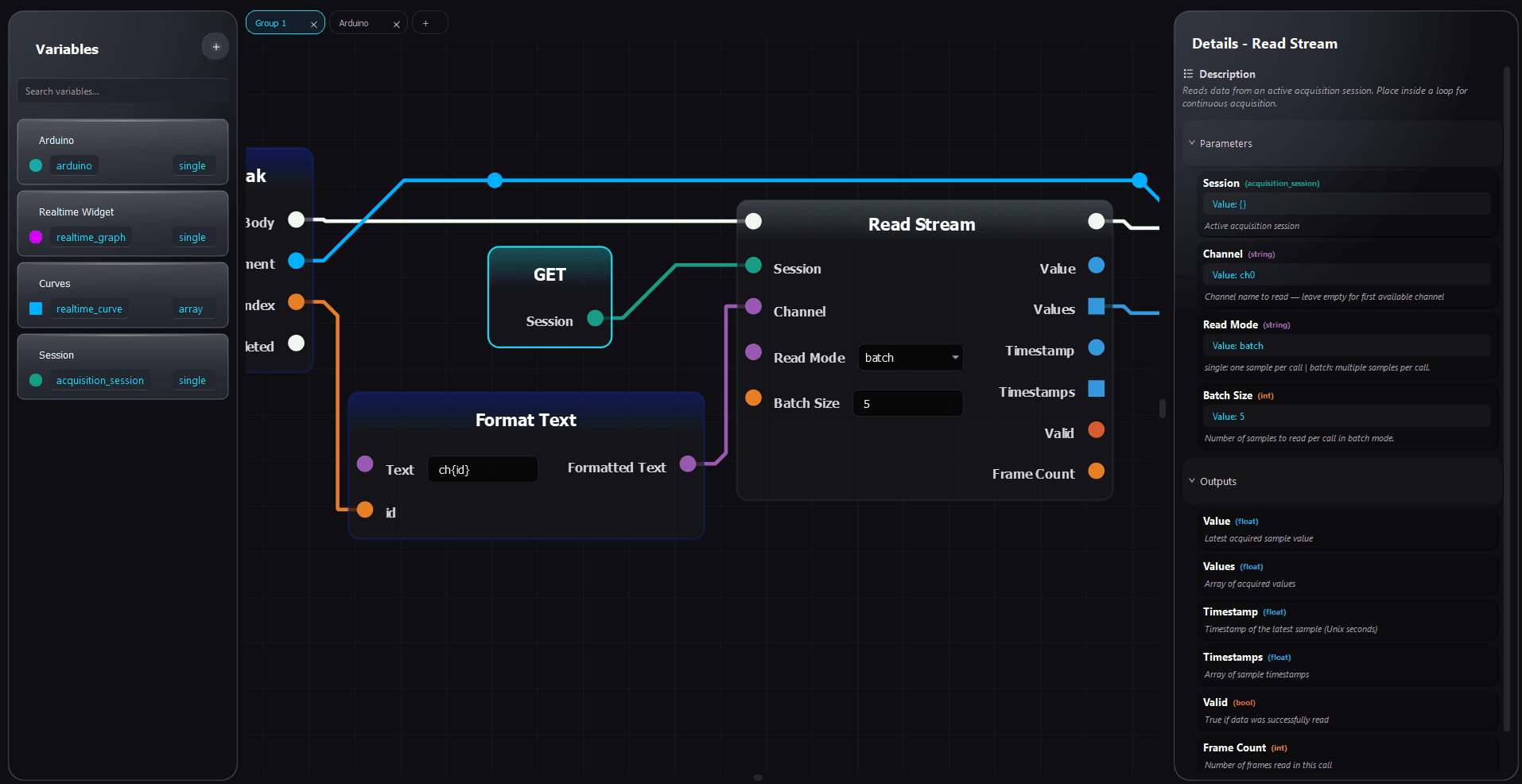

Workflow Editor
Connect nodes to build complex visual data pipelines.
Visual Feedback
Real-time visual feedback and dynamic updates.

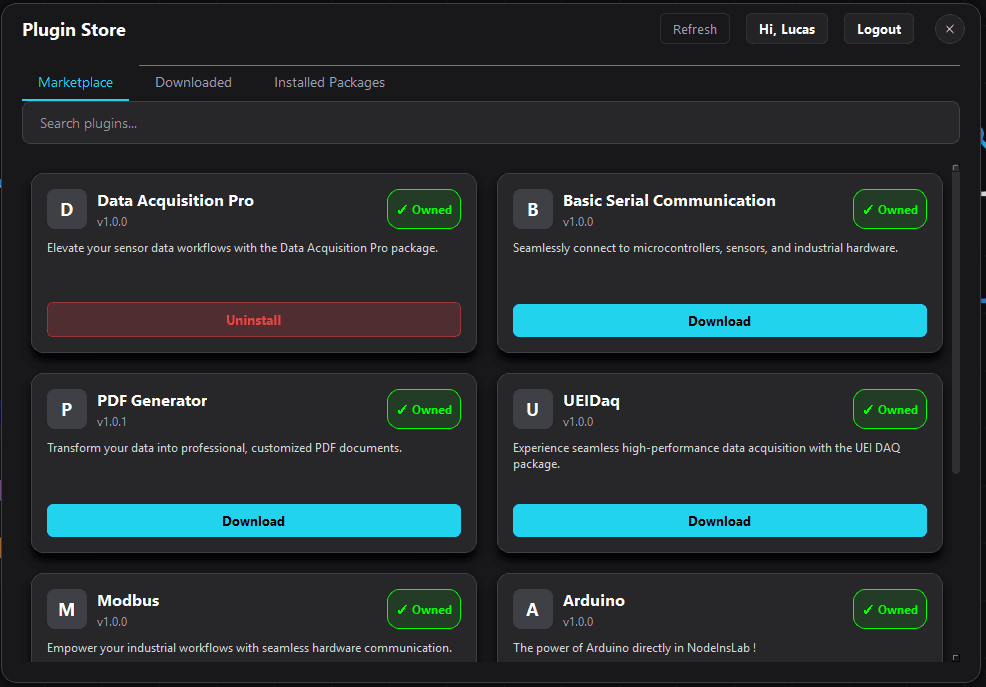

Plugin Store
Expand your capabilities with professional instrument nodes.

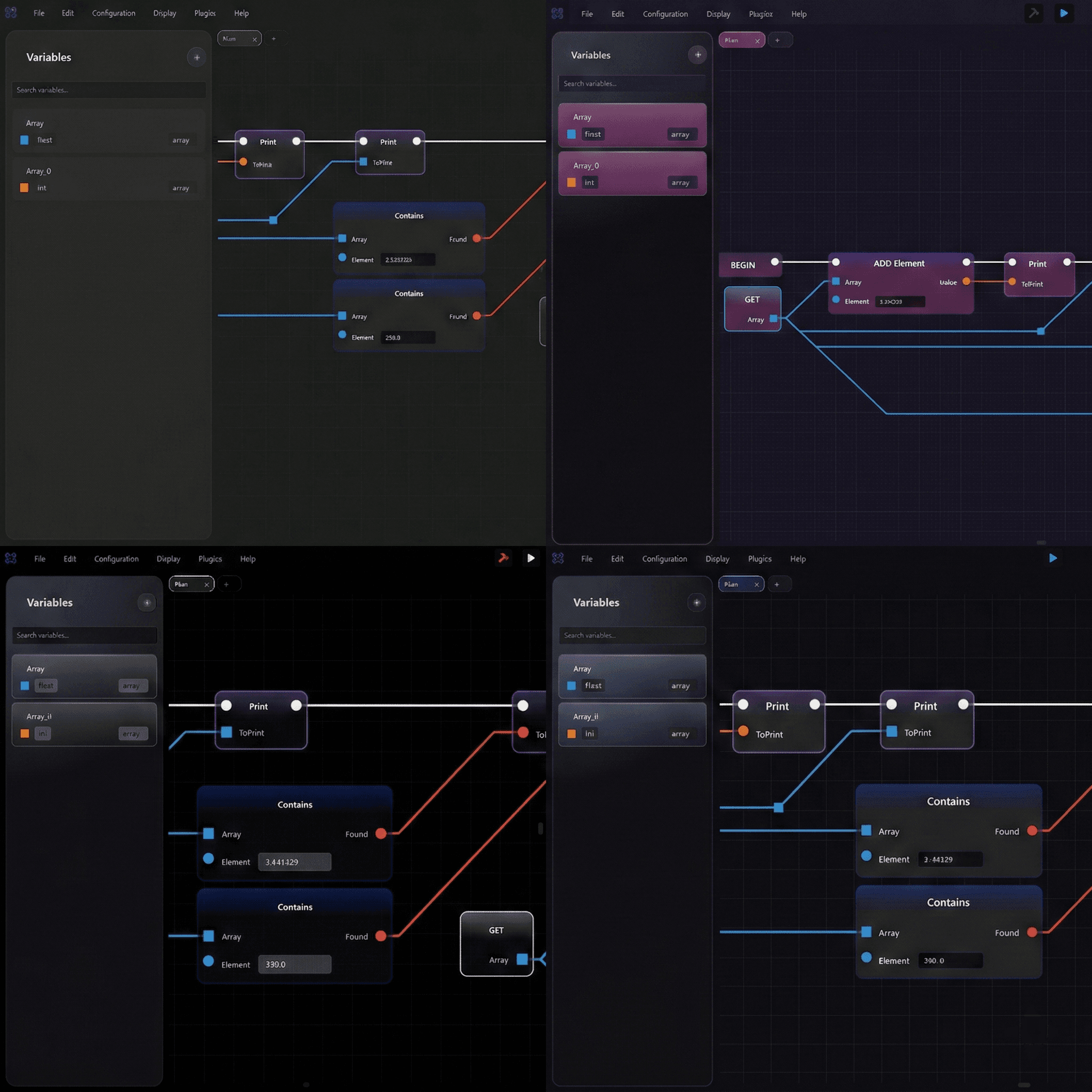

Powerful Settings
Granular control over theme and configuration.
Connect Your Instruments
NodeIns ships with built-in support for the interfaces that matter in a professional setup.
USB / Serial COM
Universal COM port support for any RS-232, RS-485, or USB-CDC device. Configurable baudrate, parity, and framing.
MQTT Broker
Subscribe to and publish on any MQTT broker. Ideal for distributed sensor networks and industrial IoT deployments.
TCP / UDP Socket
Raw socket communication for custom instruments and high-throughput data streams over local or remote networks.
File & CSV Logger
Stream data directly to structured files. Configure flush intervals, column headers, and rotation policies visually.
Currently available in the Marketplace
Need a specific connector?
Tell us what instrument or interface you need. We build new nodes based on user demand.
Simple pricing
Start building for free, then scale with your team.
NodeInsLab Free
Discovery Version. Perfect for quick wins, simple data acquisition and basic reporting.
- Full node-editor
- No access to the marketplace
- No visual customization
- No technical support
NodeInsLab Pro
Advanced data pipelines, database integrations, and professional workflows.
- Full node-editor without limits
- Full access to marketplace
- Full visual customization
- Standard technical support
NodeInsLab Ultimate
Industrial Scale. Robustness, advanced hardware connectivity, and long-term reliability.
- Full node-editor without limits
- Full access to marketplace with 10% discount on all plugins
- Ability to create custom nodes (for in-house developers)
- Integrated Git VCS (versioning)
- Built-in debugger (profiling, tracing, port inspection, etc.)
- Full visual customization
- Priority technical support
