EtherCat Base

The EtherCAT Base package is a foundational extension for NodeInsLab, specifically engineered to bring robust, low-level EtherCAT master capabilities directly to your visual workflows. Whether you are controlling complex robotic joints, managing advanced I/O modules, or diagnosing intricate network topologies, this package provides the raw power and cycle-accurate timing you need.

🌟 Key Features

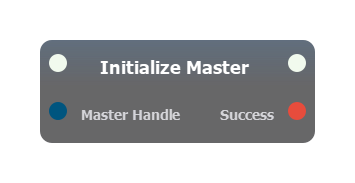

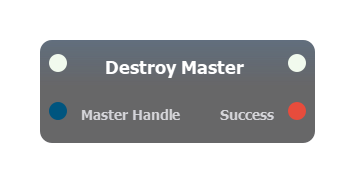

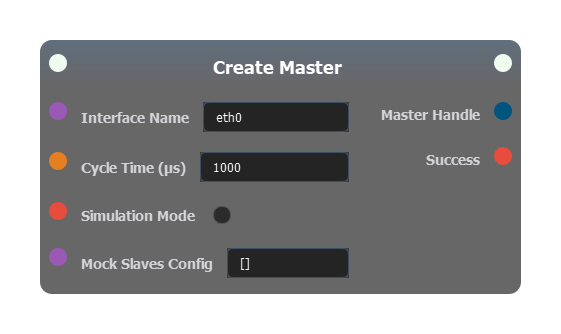

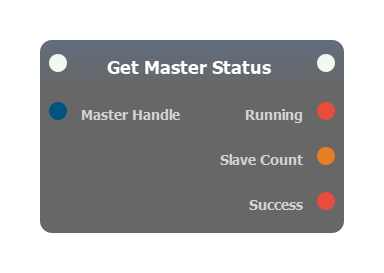

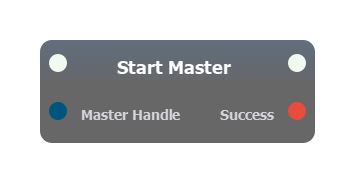

• •Complete Master Lifecycle: Setup, initialize, start, and destroy EtherCAT master instances with intuitive node connections.
• •Hardware-Agnostic Simulation: Develop and test your logic without physical hardware using the built-in Simulation Mode.

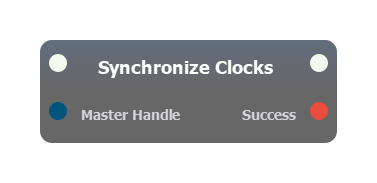

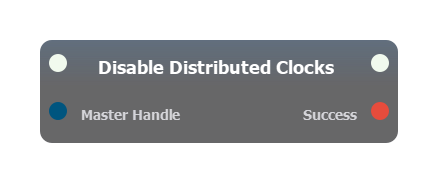

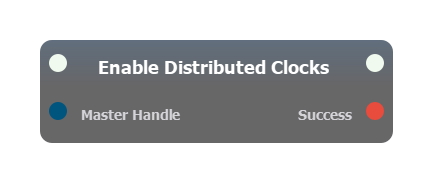

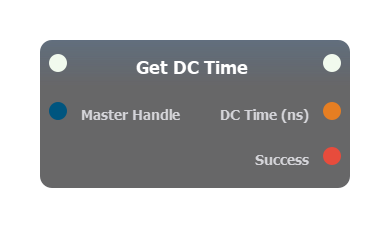

• •Distributed Clocks (DC): Achieve nanosecond synchronization across your entire industrial network.

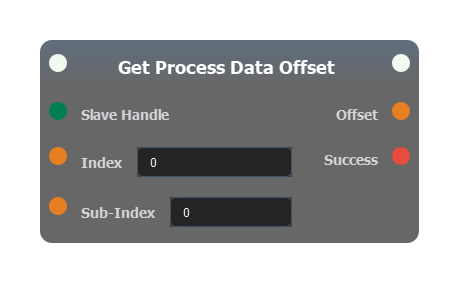

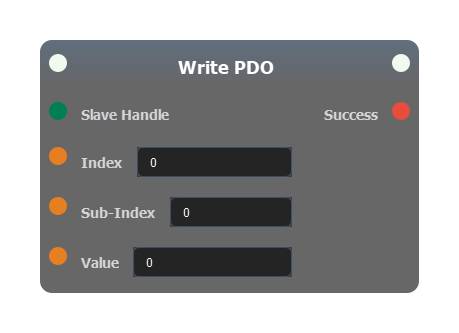

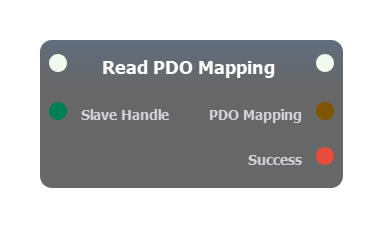

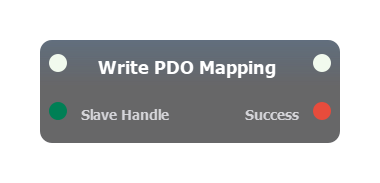

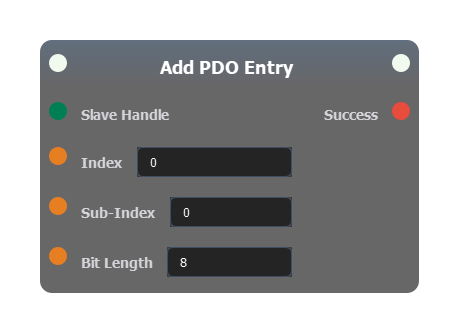

• •Dynamic PDO Mapping: Flexibly construct and commit custom Process Data Object assignments on the fly.

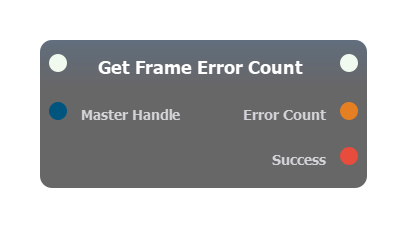

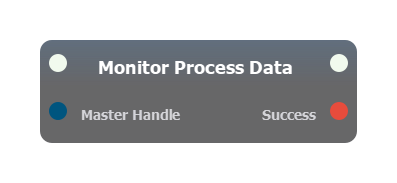

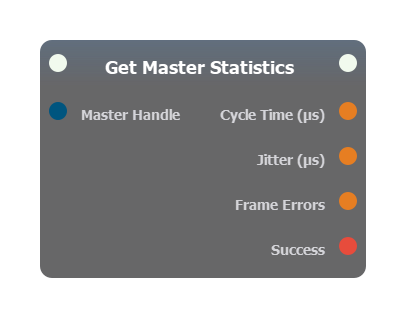

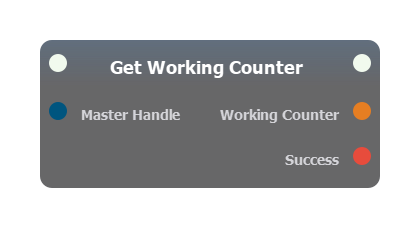

• •Comprehensive Diagnostics: Monitor real-time cyclic statistics, frame errors, and working counters to ensure peak operational health.

📦 Technical Requirements

To ensure peak performance, this package automatically manages the following dependencies:

• •pysoem (EtherCAT master protocol stack)
• •Npcap (Raw packet capture driver dependency on Windows environments)

Perfect for: *Industrial Automation, Robotics Control, Real-Time Hardware-in-the-Loop Testing, and Fieldbus Diagnostics.*
